法蘭組F3
型號：F3-24-A瀏覽次數：598次
分享產品備注：法蘭組,其相關型號有:F3-03-WA,F3-03WB,F3-03A,F3-03B,F3-06WA等等

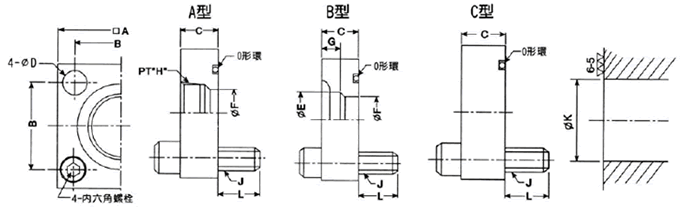

| 型號 | 口徑 PT |
尺寸 mm | o 形圈 |
內六角 螺絲 |
工作壓力 MPa | ||||||||||
| A | B | C | D | E | F | G | H | J | K | L | |||||
| F3-03-WA | 3/8 | 54 | 36 | 21 | 11 | - | 14 | - | 3/8 | M10 | 15 | 14 | G25 | M10×35 | 25 |
| F3-03-WB | 3/8 | 54 | 36 | 21 | 11 | 17.8 | 12.5 | 9 | - | M10 | 15 | 14 | G25 | M10×35 | 25 |
| F3-03-A | 1/2 | 54 | 36 | 21 | 11 | - | 17.5 | - | 1/2 | M10 | 15 | 14 | G25 | M10×35 | 25 |
| F3-03-B | 1/2 | 54 | 36 | 21 | 11 | 22.2 | 16 | 11 | - | M10 | 15 | 14 | G25 | M10×35 | 25 |
| F3-06-WA | 1/2 | 58 | 40 | 21 | 11 | - | 17.5 | - | 1/2 | M10 | 20 | 14 | G30 | M10×35 | 25 |
| F3-06-WB | 1/2 | 58 | 40 | 21 | 11 | 22.2 | 16 | 11 | - | M10 | 20 | 14 | G30 | M10×35 | 25 |
| F3-06-A | 3/4 | 58 | 40 | 27 | 11 | - | 23 | - | 3/4 | M10 | 20 | 13 | G30 | M10×40 | 25 |
| F3-06-B | 3/4 | 58 | 40 | 27 | 11 | 27.2 | 20 | 12 | - | M10 | 20 | 14 | G30 | M10×35 | 25 |
| F3-08-WA | 3/4 | 68 | 48 | 27 | 13.5 | - | 23 | - | 3/4 | M12 | 25 | 18 | G35 | M12×45 | 25 |
| F3-08-WB | 3/4 | 68 | 48 | 27 | 13.5 | 27.2 | 20 | 112 | - | M12 | 25 | 18 | G35 | M12×45 | 25 |
| F3-08-A | 1 | 68 | 48 | 27 | 13.5 | - | 29 | - | 1 | M12 | 25 | 18 | G35 | M12×45 | 25 |
| F3-08-B | 1 | 68 | 48 | 27 | 13.5 | 34.5 | 25 | 14 | - | M12 | 25 | 18 | G35 | M12×45 | 25 |
| F3-10-WA | 1 | 76 | 56 | 27 | 13.5 | - | 29 | - | 1 | M12 | 31.5 | 18 | G40 | M12×45 | 25 |
| F3-10-WB | 1 | 76 | 56 | 27 | 13.5 | 34.5 | 25 | 14 | - | M12 | 31.5 | 18 | G40 | M12×45 | 25 |
| F3-10-A | 11/4 | 76 | 56 | 27 | 13.5 | - | 31.5 | - | 11/4 | M12 | 31.5 | 18 | G40 | M12×45 | 25 |
| F3-10-B | 11/4 | 76 | 56 | 27 | 13.5 | 43.2 | 31.5 | 16 | - | M12 | 31.5 | 18 | G40 | M12×45 | 25 |
| F3-12-WA | 11/4 | 92 | 65 | 35 | 18 | - | 31.5 | - | 11/4 | M16 | 37.5 | 25 | G50 | M16×60 | 25 |
| F3-12-WB | 11/4 | 92 | 65 | 35 | 18 | 43.2 | 31.5 | 16 | - | M16 | 37.5 | 25 | G50 | M16×60 | 25 |
| F3-12-A | 11/2 | 92 | 65 | 35 | 18 | - | 43.5 | - | 11/2 | M16 | 37.5 | 25 | G50 | M16×60 | 25 |
| F3-12-B | 11/2 | 92 | 65 | 35 | 18 | 49.1 | 37.5 | 18 | - | M16 | 37.5 | 21 | G50 | M16×60 | 25 |
| F3-16-WA | 11/2 | 100 | 73 | 35 | 18 | - | 43.5 | - | 11/2 | M16 | 50 | 25 | G60 | M16×60 | 25 |
| F3-16-WB | 11/2 | 100 | 73 | 35 | 18 | 49.1 | 37.5 | 18 | - | M16 | 50 | 25 | G60 | M16×60 | 25 |
| F3-16-A | 2 | 100 | 73 | 35 | 18 | - | 47.5 | - | 2 | M16 | 50 | 25 | G60 | M16×60 | 25 |
| F3-16-B | 2 | 100 | 73 | 35 | 18 | 61.1 | 47.5 | 20 | - | M16 | 50 | 25 | G60 | M16×60 | 25 |
| F3-20-WA | 2 | 128 | 92 | 44 | 22 | - | 47.5 | - | 2 | M20 | 60 | 30 | G75 | M20×75 | 25 |
| F3-20-WB | 2 | 128 | 92 | 44 | 22 | 61.1 | 47.5 | 20 | - | M20 | 60 | 30 | G75 | M20×75 | 25 |
| F3-20-A | 21/2 | 128 | 92 | 44 | 22 | - | 70 | - | 21/2 | M20 | 60 | 30 | G75 | M20×75 | 25 |
| F3-20-B | 21/2 | 128 | 92 | 44 | 22 | 77.1 | 60 | 22 | - | M20 | 60 | 30 | G75 | M20×75 | 25 |
| F3-24-WA | 21/2 | 140 | 103 | 44 | 24 | - | 70 | - | 21/2 | M22 | 75 | 36 | G85 | M22×80 | 25 |
| F3-24-WB | 21/2 | 140 | 103 | 44 | 24 | 77.1 | 60 | 22 | - | M22 | 75 | 36 | G85 | M22×80 | 25 |
| F3-24-A | 3 | 140 | 103 | 49 | 24 | - | 71 | - | 3 | M22 | 75 | 31 | G85 | M22×80 | 25 |
| F3-24-B | 3 | 140 | 103 | 44 | 24 | 90 | 71 | 25 | - | M22 | 75 | 36 | G85 | M22×80 | 25 |
| AR | 16 | 01 | -B | -F | S | R | K |
| 型號說明 | 排量 mℓ/rev | 控制方式 | 調壓范圍 MPa | 安裝方式 | 配管方向 | 旋轉方向 （從軸側看） | 軸心型式 |
| 變量柱塞泵 | 16:15.8 22:22.2 |
01:壓力補償控制 | B：1.2~7 C：1.2~16 |
F：法蘭式 | 無記號： 后方出油 S：兩側出油 （特殊品） |
R：順時針方向 L：逆時針方向 |
K：平鍵 S：SAE 13齒DP16/32 |
